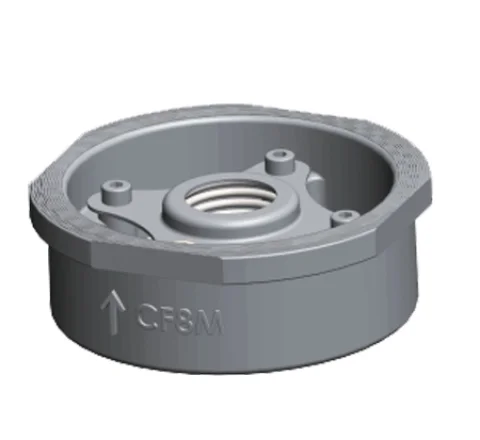

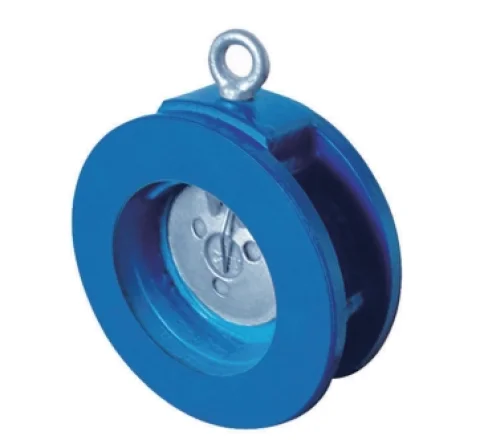

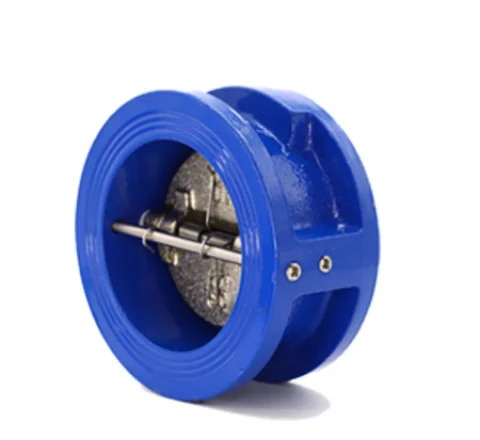

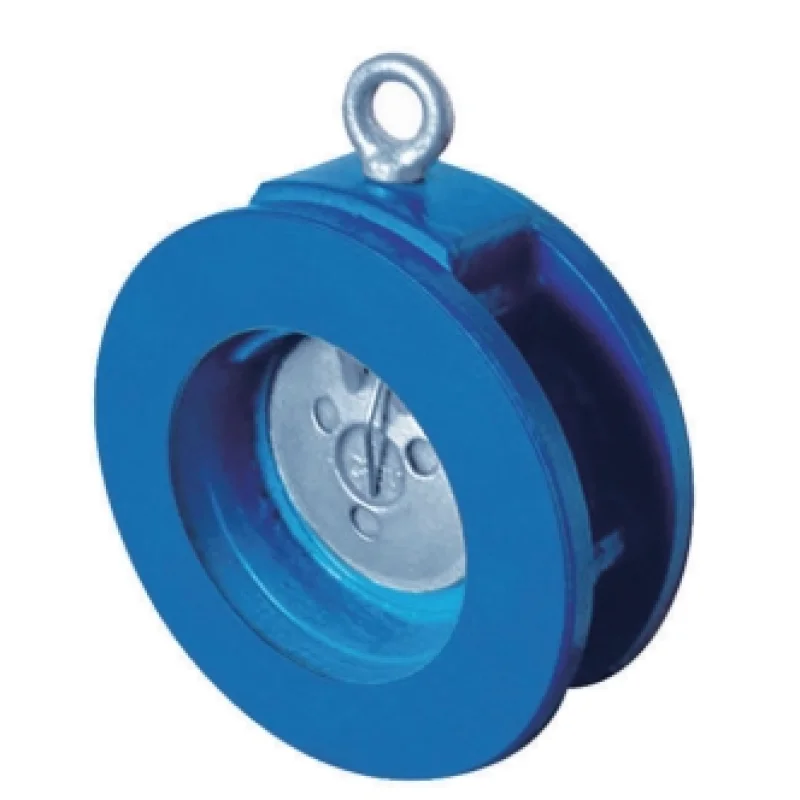

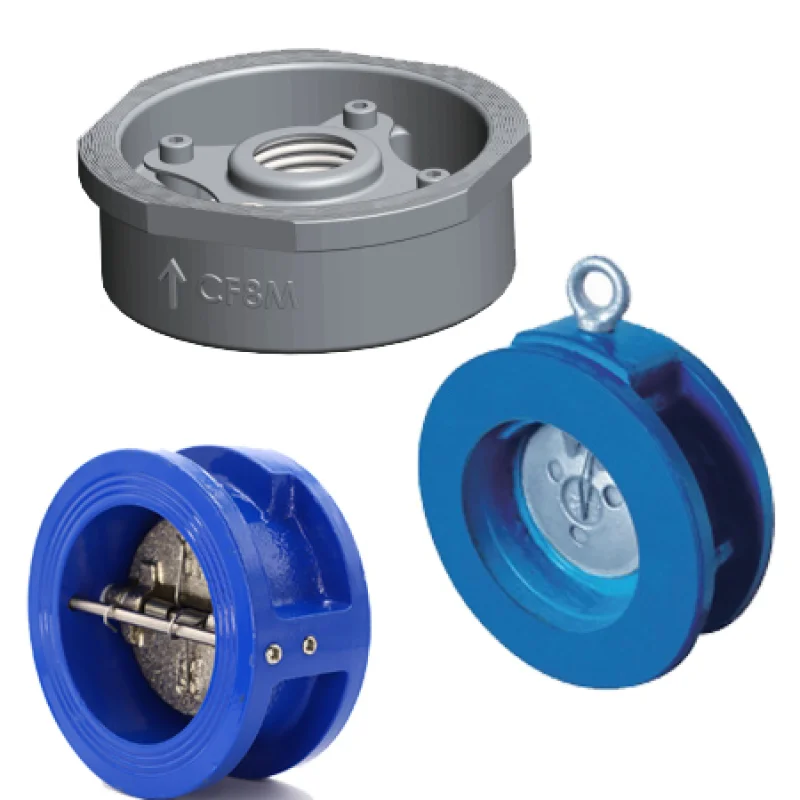

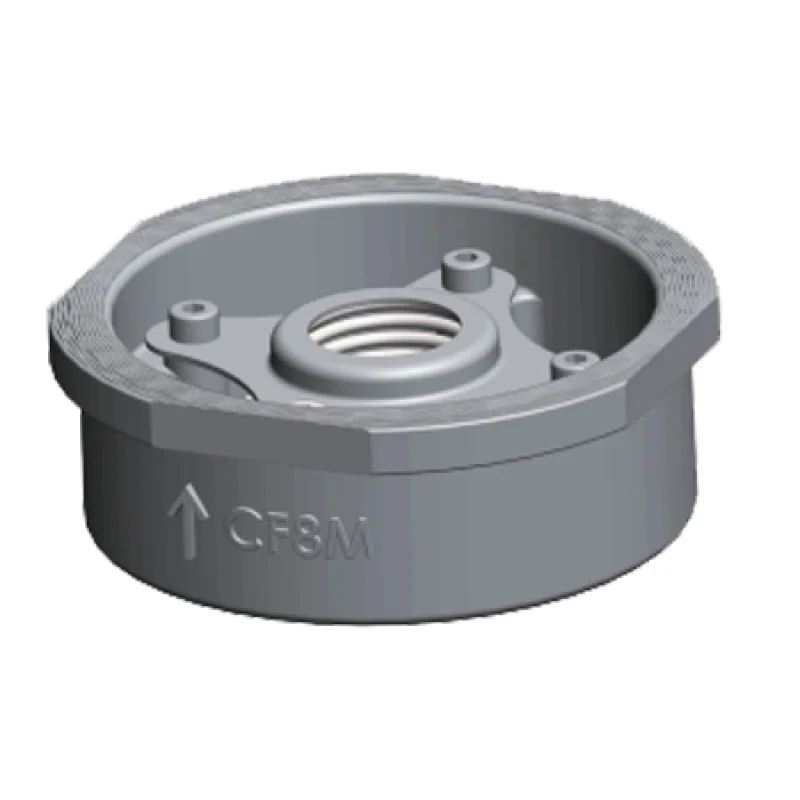

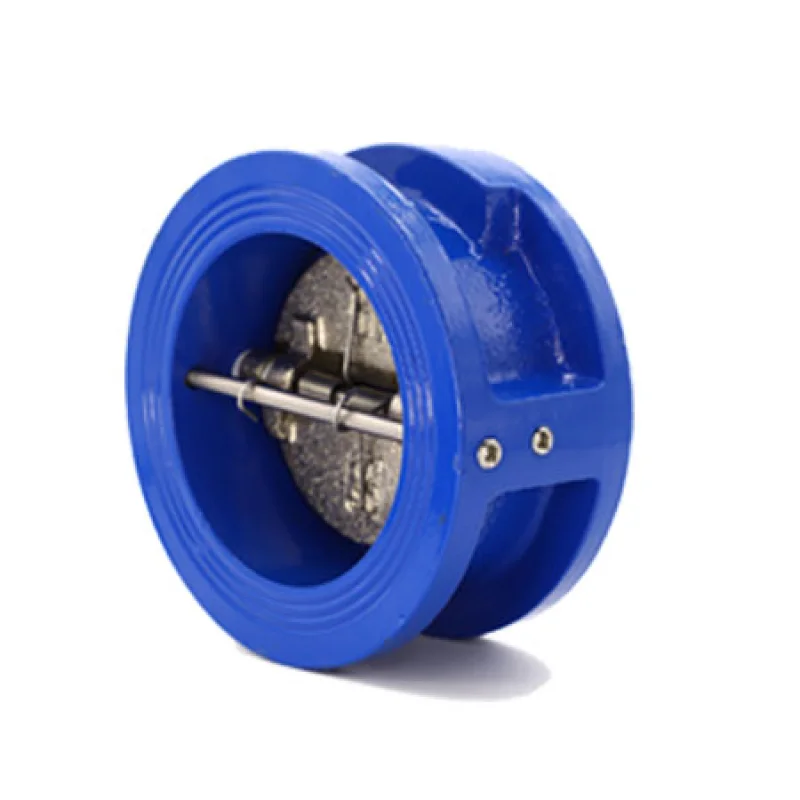

Available in multiple sizes and types 4/6/8 inch Wafer Style Check Valve

Composition:

Clamped check valve a variety of products, clamped swing check valve, clamped lift check valve, clamped double door check valve, clamped muffler check valve, basically by the valve body, valve seat, valve plate, spring, guiding sleeve, seat seal ring composition. Compact structure, suitable for small space use.

Material:

The valve body is made of grey iron, when the specification is DN350 or above, it is made of ductile iron, the valve plate and valve shaft are made of stainless steel, which can effectively prevent rust, and the valve seat is made of EPDM, and we have passed the WRAS certification. Flanges are in accordance with EN1092, ANSI B 16.1 standards, we can also provide other flange standard types.

Principle of operation:

The medium is only allowed to flow in one direction and is prevented from flowing in the opposite direction. The valve works automatically, under the pressure of fluid flowing in one direction, the flap opens; when the fluid flows in the opposite direction, the pressure of the fluid and the self-weight of the flap combine with the flap to act on the valve seat, thus cutting off the flow.

Advantages:

Clamp check valve structure length is short, small size, light weight, simple and compact, sensitive action. Can be divided into three structural forms: lift, screw-up and butterfly.

Applications:

Check valve is used in piping system, its main role is to prevent the medium backflow, prevent the pump and its driving motor machine reversal, as well as the discharge of the medium in the container. It can also be used to give which the pressure may rise to more than the main system pressure of the auxiliary system to provide supply pipeline.

Can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidative media and urea and other media flow.

Choose A Better Manufacturers

Wide range of check valves：

We have the valve industry's first-class research team, strong product development and manufacturing capacity, a number of patents, focusing on the valve industry for more than 10 years, we produce swing check valves, muffler check valves, resilient check valves, lift check valves, resilient check valves, etc., as well as other gate valves, butterfly valves, globe valves, etc. EATHU also accepts customised valves, you can send an enquiry to us. We provide you with the most cost-effective valve solutions.

Cost Effective：

In today's competitive market, it is important to choose a cost-effective valve supplier.EATHU is committed to provide excellent quality and performance valves, we continue to innovate and optimise the design for our customers to cope with a variety of complex application scenarios. We provide detailed technical parameters and application solutions for each product to ensure that we meet the needs of our customers.EATHU always hope that you can work with us to obtain high-quality valves, and enjoy excellent value for money and excellent service support!
