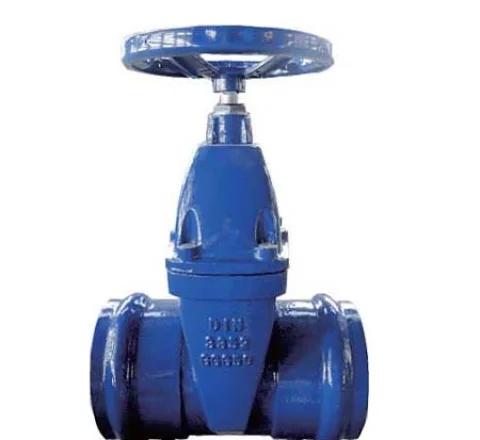

Name: Ductile Iron Socket End Gate Valve for PVC Pipe
Brand: Ductile Iron Socket End Gate Valve for PVC Pipe
SKU: 9999
Price: 6.9 USD
Availability: InStock
Rating: 5 (5 reviews)

Ductile Iron Socket End Gate Valve for PVC Pipe

Features:

MOQ: 50 Pcs

Valve body material: ductile iron GGG50

Valve Structure: Socket

EATHU offers high quality Socket End Gate Valves with flanges drilled in accordance with DIN 2532-2533 / BS EN 1092, which can be installed directly in the ground for connection to PVC pipes, steel pipes and ductile iron pipes. The valve casting shells are of equal wall thickness and can currently withstand pressure ratings up to PN25.

EATHU Can Provide These Ductile Iron Socket End Gate Valve

Here we introduce Ductile Iron Socket End Gate Valve specification, size, caliber, material, etc. We also show you EATHU production capacity, and we hope that through these we can let you know more about us and our valves.

MOQ	≥ 30 pics per Order
SAMPLE SUPPORT	Yes
OEM SUPPORT	Yes
SIZE (inch/MM)	DN 50~DN600
MATERIAL	Cast Iron, Ductile Iron
PRESSURE (MPa)	10/16 bar
MANIPULATION METHOD	Drive head operation
PROCESS	Investment Casting / Lost Foam Casting / Machining
VALVE GRADE	Food Grade / Sanitary Grade / Industrial Grade
CLASSIFICATION	Cast Iron Gate Valves
CERTIFICATION	DIN3356 / According to Requirements
PRODUCTION CAPACITY	300 Tons / Months
OTHER SERVICE
PACKAGE MATERIAL	Wood / Corrugated Paper
PACKAGE SIZE	Customized Support
PACKAGING APPEARANCE	Customized Support
DELIVERY	Global Delivery Support
QA SERVICE SUPPORT	Yes

About Ductile Iron Socket End Gate Valve

For you to briefly introduce Ductile Iron Socket End Gate Valve, the opening and closing parts of the socket gate valve is the gate, the movement direction of the gate is perpendicular to the direction of the fluid, the gate valve can only be used for the full opening and closing, can not be used for regulating and throttling, we are here to introduce you to the characteristics of the valve.

Socket End Gate Valve

To exempt the maintenance design, the static electricity epoxy powder spray coating, may bury directly installs, domestic first uses the bell and spigot joint and the mechanical flange bell promotion domestic application Manufacturer, uses in the PVC tube, the steel pipe and the nodular cast iron tube links fast, convenient, the economy is at present the most popular pipeline connection.

May have the pressure to replace the seal assembly, goes nonstop to the designed discharge to be smallest, simultaneously may avoid the foreign matter detention, seals the damper plate wide angle design softly, seals the angle of pressure evolution type design, the valve lever bearing surface uses the high strength self lubrication material, opens shuts with ease freely, the valve casting housing uses and so on wall thickness designs, causes the casting stress function to cause the housing dehiscence the possibility approach in zero, at present may withstand PN25 the pressure rating.

Flat bottom seat ring integral with the body,inside and outside epoxy resin coating,wedge wholly bonded with rubber, three “o” ring sealing,these all insure excellent corrosion protection and reliable sealing capability.Upon request,the gate valves can be actuated by operating lever,hand wheel,electrical actuator and so on.

Unique design:

Compact design: one-piece bonnet, no protruding stem.

Stem nut is separated from the wedge and will not seize.

Flat-bottomed seat ring ensures no room for extrusion.

Maintenance-free “O” ring design for stem back seal.

Superior corrosion resistance:

Internal epoxy coated or enamel coated (on request), external epoxy coated.

Hexagon socket head bolts, top sealed with glue.

Healthy and reliable:

Epoxy resin coating in accordance with ISO standards.

Wedge bonded rubber for health check.

Trim made of stainless steel or bronze.

Choose the Best Supplier

We manufacture and supply a wide range of gate valves, resilient and metal gate valves, multi-standard gate valves, such as DIN3356, BS5152, etc. The valves comply with a number of international standards and are suitable for a wide range of projects and conditions, we have provided valves for projects in many regions of the world, you can choose the right valve according to the needs and conditions, you want to know more about the valves can be contacted, we offer you the most suitable price! You can contact us for more valves, we will offer you the most suitable price.

EATHU Ductile Iron Socket End Gate Valve Factory

We arrange different production processes according to the different characteristics and requirements of the valves, EATHU has coated sand casting, silica gel casting, precision casting, etc. Different valves have different requirements and different production processes, in order to achieve the highest quality and maximum functionality of the valves, EATHU sets up the best program for you.

Silica Sol Casting

Clay sand production line is widely used in foundries, as one of the important means in the casting process, it is mainly used in casting sand, core sand, etc., which is used to change the wet strength and improve the modeling, etc. EATHU welcomes you to visit our factory.

Clay Sand Casting

Silicone sol casting as a kind of precision casting, EATHU use wax injection equipment is imported hydraulic equipment, silicone sol process equipment and raw materials are advanced advanced, so the cost of this process compared to other annoying shit will be higher, but silicone sol is suitable for small casting casting, the surface is fine.

Coated Sand Casting

EATHU Foundry provides you with coated sand casting, coated sand casting produces castings with high surface finish and flat surface, we can adjust the ratio of raw material sand appropriately according to the user's different technical needs in terms of curing speed, film removal, fluidity, routing, casting surface finish, storage and so on.

Choose EATHU Socket Gate Valve

Choosing a trustworthy valve manufacturing supplier is crucial, EATHU has always aimed at product quality and customer satisfaction. We have been working hard to provide better service and products to our customers in many ways. We believe that you can have a better understanding of EATHU after reading this article.

High Quality Ductile Iron Socket End Gate Valve

Excellent Ductile Iron Socket End Gate Valve Quality

GGG50 is a German cast iron standard, which has medium strength and toughness, and still good cutability. Valve raw materials of high quality, simple modeling, casting process is better, our factory has been ISO9001 certified, strictly in accordance with the ISO 9001 quality management quality control, 100% inspection, zero tolerance for defective products, in order to achieve the customer and the working conditions required valve performance.

Well-equipped QC Center

In order to ensure the quality of products, EATHU has set up a special QC center, which is responsible for quality inspection and evaluation of products. The QC personnel will test and measure the appearance, size, function and performance of the valves according to the customer's requirements and the standard requirements, and we will record the test process and the results to facilitate the adjustment of the subsequent production.

Attentive after-sales service

EATHU not only provides customers with high quality valves, but also provides customers with comprehensive after-sales service to ensure that your valves always operate efficiently. In the process of use, if you encounter any problems, our technical support team will respond quickly to provide you with troubleshooting services.
Save More Time, Effort and Money

More Comprehensive Supply Chains

EATHU is a one-stop shop for a wide variety of customer needs.
EATHU can not only supply you with a variety of multi-standard valves, but also provide related products, such as pipe fittings, flanges and other services, you can purchase the entire project here, you can also customize products, we can be based on your drawings and requirements, customized to better meet the project and the working conditions of the product for you.
Our technology can provide you with professional technical advice to help you choose more suitable valves and piping solutions.
EATHU works with a number of suppliers and freight forwarding companies, we can compare the most suitable and cost-effective price program for you.

More Thoughtful Services

We offer a wide range of certifications, ASTM, ANSI, NSF, API, DIN, JIS, BS EN, and we can also assist our customers with other certifications for other products, such as industrial grade, food grade, and other certifications.
We provide fast response pre-sales and after-sales service, including product return, maintenance, online guidance for installation and so on. And we have a specialized customer feedback mechanism to collect and process your comments in time.

ARTICLES of Ductile Iron Socket End Gate Valve

We are here to prepare Socket End Gate Valve information, technology, news, etc. We will update you, as well as real-time update EATHU dynamic. You are welcome to contact us at any time for proposals and quotations.

8th May, 2024

Cast Iron Valves VS Cast Steel Valves

Valves according to the material can be divided into cast iron valves, cast steel valves, stainless steel valves (201, 304, 316, etc.)。Here, Eathu answers your questions about the differences between cast iron and cast steel valves.

REVIEWS FROM CUSTOMER

We have many customers who have been cooperating with us for many years, here are their comments on EATHU, their trust and support for us to grow, we hope to become a good partner with you as well, to be your most trusted valve supplier!
