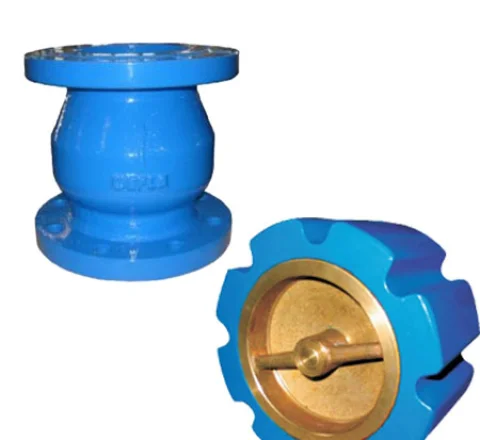

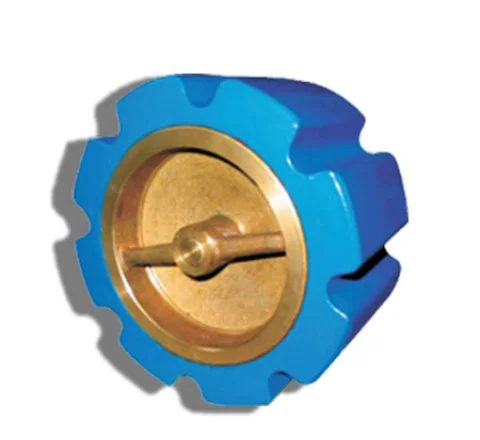

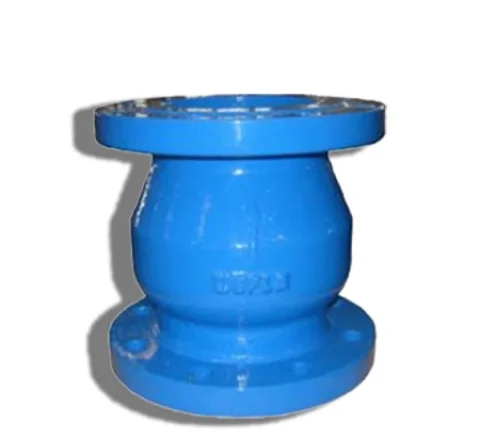

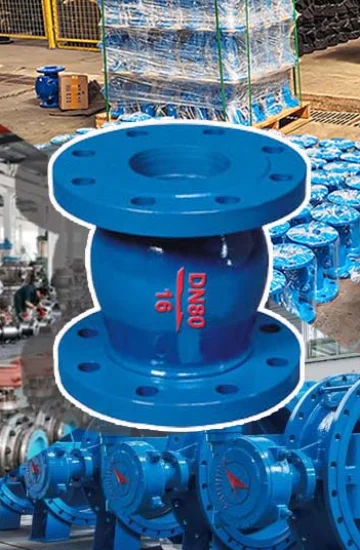

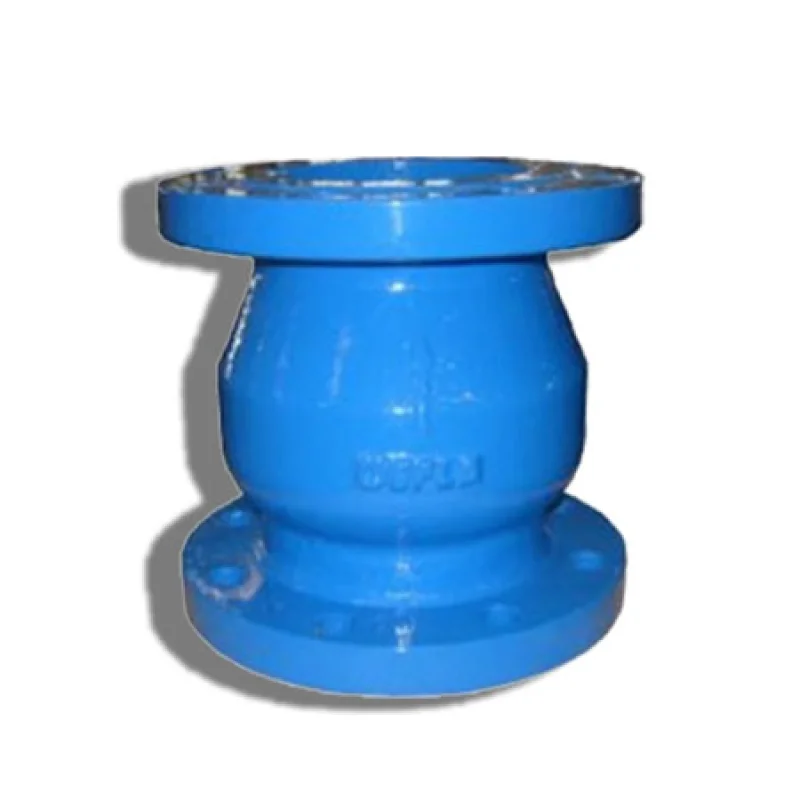

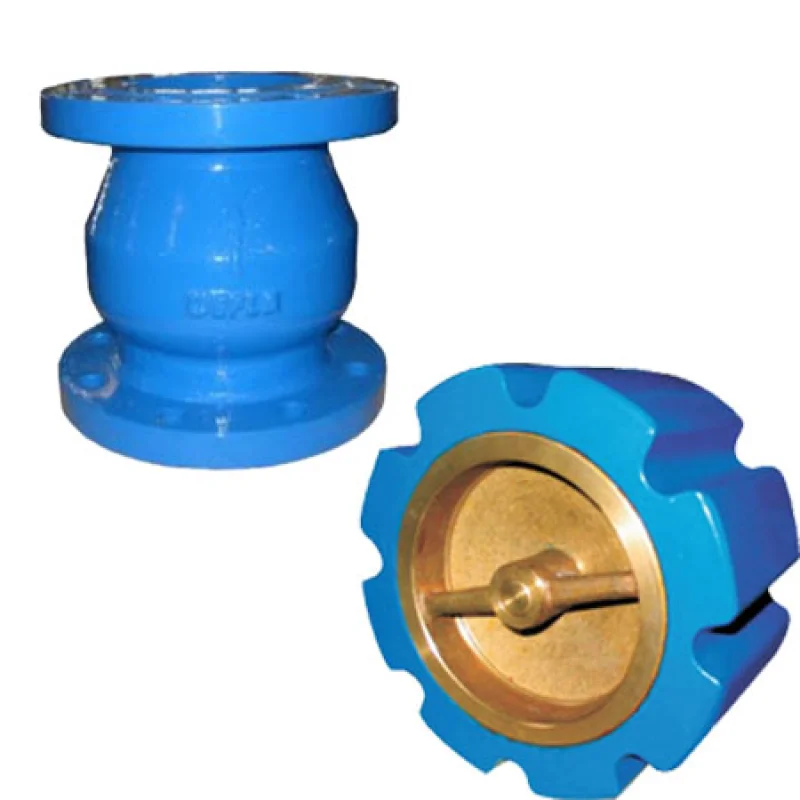

High quality Silent Check Valve Bronze Seat & SS Seat in China

Composition:

Mute check valve consists of valve body, valve seat, conductor, valve flap, spring and other parts. The internal flow channel adopts streamline design, head loss is about 1/3-1/4 compared with similar check valves, at the same time, when the pump stops, its valve flap in the multi-spring closure time is short, and can be quickly closed to avoid water hammer to prevent the huge sound of water, the formation of mute effect.

Material:

Valve body material can choose ductile iron, grey iron, cast steel, stainless steel, flanges in accordance with EN1092/ANSI B16.1 Class 125 and other standards, you can also send us the flange standards you need, we also have other standards to choose from. Actually DN50-DN300,EPDM cover rubber has passed WRAS certification.

Working Principle:

When water flows in the direction, the valve stays open and allows water to flow through normally. However, when the flow is reversed, the spring-assisted poppet closes quickly, thus preventing backflow and the associated water hammer effect. This design efficiently regulates flow and reduces the damaging effects of water hammer in the system.

Advantages:

The water flow channel inside the valve body is straight and tends to be streamlined, which improves the flow of the pipeline medium.

Valve opening and closing movement distance is short, can be quickly opened and closed, water hammer sound is small, excellent mute effect.

The valve body is cleverly designed, reasonable structure, light weight, easy to install, good sealing performance.

Applications:

Mute check valve is mainly used in drainage, fire fighting, heating pipeline system, installed in the pipeline pump outlet, mainly plays a role in preventing water hammer phenomenon, protect pipeline facilities, reduce the role of noise. Valve access to both ends shall be blocked, exists in a dry and ventilated room. If stored for a long time, it should be checked frequently to prevent rust and corrosion.

Choose A Better Manufacturer

Wide range of valves

EATH provides high-quality and high-performance check valves for customers in the fields of petroleum, chemical, metallurgy, light industry, urban construction, oil and gas transmission, coal-chemical engineering and long-distance pipeline engineering. The range of valves covers DN15~2200mm (1/2"~88"), nominal pressure 1.6MPa~42MPa, working temperature -196~750, materials include ductile iron, grey iron, bronze, carbon steel, stainless steel, heat-resistant alloy steel, monel alloy, low temperature steel, titanium alloy and other special steel types.

Cost-effective

EATHU integrates R&D, purchasing, production, sales, logistics and after-sales service, which greatly reduces the purchasing cost for you, we have stable quality, multi-directional testing products, reasonable price, our internal efficient cost control, which reduces the expense for you, assembly line process, shortens the delivery time, and provides many-to-one technical service to meet your needs.
