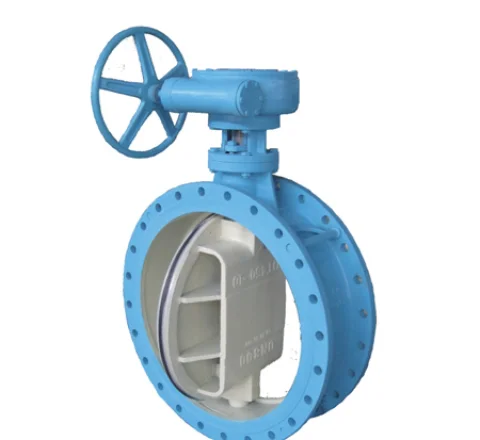

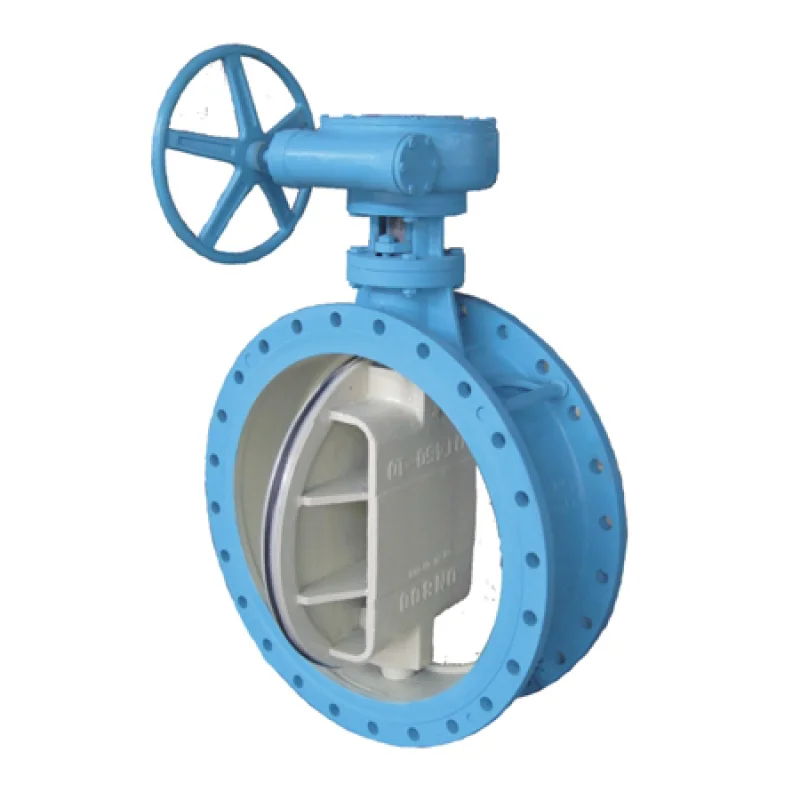

Double Eccentric Butterfly Valve

Features:

The eccentric structure reduces the friction of the sealing ring and prolonging the service life of the valve.

Completely sealed, zero leakage. It can be used in ultra-high vacuum condition.

Replace the valve plate seal ring, butterfly plate, rotating shaft and other materials, can apply to a variety of media and different temperatures

It is suitable for water plants, power plants, steel mills, smelting, chemical industry, water source spring engineering, environmental facilities construction and other system drainage, especially suitable for waterway pipelines, as regulating and interception equipment.

Double Eccentric Butterfly Valve Specification

Here is the product introduction of Eathu Double Eccentric Butterfly Valve technical parameters, factory capacity and so on. Learn more about Double Eccentric Butterfly Valve here, buy with confidence!

Name	Double Eccentric Butterfly Valve
Pressure	DN1400-DN2400 : 10bar
	DN80-DN1200 : 16bar
Body Material	Ductile Iron
Surface Protection	Epoxy Spraying / Spray Painting
Connection	Flange Type/ Water Type / Lug Type
Operation	Lever, Gear, Motor, Pneumatic
Certificates	ANSI / NSF 61&372
Factory Capacity	100 ton / Month
MOQ	100 pcs

Eathu Double Eccentric Butterfly Valve Description

In order to improve the single eccentricity, the center of gravity of the valve stem is shifted by a distance, so that the line between the shaft and the sealing point and the sealing surface are obtuse, and the sealing surface does not interfere when sealing, and the more the pass is tighter, the greater the sealing surface compression force.

Double Eccentric Butterfly Valve Structural Features:

(1) Valve body: The valve body is the main part of the butterfly valve, usually made of cast iron, ductile iron, carbon steel and other materials. Inlet and outlet pipe interfaces are provided on the valve body to control fluid entry and exit.

(2) Valve disc: The valve disc is a key part of the butterfly valve, responsible for opening and closing the fluid channel. It is usually made of corrosion-resistant materials such as nickel-aluminum bronze and stainless steel. The disc is convex in shape and can be inserted into the seat to form a seal with it.

(3) Valve stem: The valve stem is a part connected with the valve disc, which can transfer the operating force to the valve disc and control the opening and closing of the valve. Usually made of materials such as carbon steel.

(4) Valve seat: The valve seat is the part in contact with the valve disc and is made of wear-resistant and corrosion-resistant materials, such as polytetrafluoroethylene, polystyrene, etc. It has one or more sealing surfaces to form a seal with the valve disc.

(5) Operating device: The operating device is used to control the opening and closing of the valve. Common operating devices include manual handwheels, electric actuators and pneumatic actuators.

(6) Standard: Valves are designed to meet the design requirements of EN593, BS 5155, AWWA C504 and API 609.

Double Eccentric Butterfly Valve Sealing Principle:

(1) Double eccentric contact: The disc of the double eccentric butterfly valve has two eccentric positions to ensure that it is in contact with the sealing surface of the valve seat in the closed state. This double eccentric contact design can reduce the wear of the sealing surface and can withstand high working pressure.

(2) Close contact: Close contact is formed between the disc and the seat to prevent fluid leakage. The valve seat is usually made of wear-resistant and corrosion-resistant materials to ensure its rigidity and sealing performance.

(3) Multi-layer seal: Double eccentric butterfly valves usually adopt a multi-layer seal design, that is, a plurality of sealing rings are set between the disc and the seat. This design can increase the sealing performance and ensure zero leakage of fluid.

(4) high temperature and high pressure applicable: double eccentric butterfly valve is suitable for sealing in high temperature and high pressure environments, with wear-resistant. Corrosion-resistant and high temperature characteristics. It can ensure the normal operation of the fluid at high temperature and high pressure, and can provide reliable sealing performance

Double Eccentric Butterfly Valve Applications:

Double Eccentric Butterfly Valve is mainly used in water plant, power plant, steel smelting, chemical industry, water source spring project, environmental facilities construction and other systems for drainage, especially for waterway pipeline, as a regulating and intercepting equipment. Double Eccentric Butterfly Valve is also called high performance butterfly valve, compared with the centre line butterfly valve, double eccentric butterfly valve is more resistant to high pressure, longer life, good stability. Compared with other valves, the larger the diameter, the lighter the material, the lower the cost.

Eathu Valve Factory

Eathu's valve foundry is equipped with high-precision machines, CNC equipment, heat treatment equipment, etc. We have an experienced technical team and a professional quality control centre.Eathu supports online and offline factory inspection, please contact us.

Valve Testing

Eathu valves are undergoing leakage testing to ensure the quality of the valves leaving the factory and to guarantee zero leakage.

EATHU Industrial Valve Acceptance

EATHU is conducting valve leakage tests and for the trust of our customers, we provide quality inspection reports and also support third party testing.

Valve Manufacturing Process

The picture shows the valves in the factory after the surface coating and drying, EATHU according to the valve standards and customer requirements for the valve surface treatment.

Valve Parts Painting and Drying

EATHU Foundry produces valve parts and valve fittings, this picture shows valve fittings being painted after drying. This is our drying site, we can customise it according to customer requirements

Eathu Valve has the Absolute Edge:

Eathu Valve Factory more than thirty years of experience in the valve industry has absolute advantages and advantages.

EATHU Valve Absolute Advantage

Eathu's Double Eccentric Butterfly Valve will ensure the quality from the following aspects:

Material Selection :

Valve body and bonnet materials: usually cast iron, carbon steel, stainless steel and other materials, in line with relevant standards and norms to ensure corrosion resistance and mechanical strength.
Sealing materials: such as, valve seat, seal ring, etc., choose wear-resistant, high temperature resistant, corrosion-resistant materials to ensure the service life of double eccentric butterfly valve.

Production technology and Precision :

Processing precision: the sealing performance and operating performance of the valve, the matching precision of the valve seat and valve flap, the matching precision of the valve stem and bonnet.
Surface treatment: surface treatment of the valve inside and outside, coating or polishing treatment, Eathu Valve uses epoxy coating to ensure the corrosion resistance and appearance quality of the valve.

Design and Structure :

Valve structure: the rationality and craftsmanship of the double eccentric design is in line with the engineering requirements design and actual use conditions.
Operational performance: Eathu Valve opening and closing torque, test the operating feel, whether the design of the operating mechanism is reasonable.

Durability and Reliability :

Service life: Eathu Valve ensures the long-term service life of the valve through material selection, production process and structural design.
Operation reliability: Eathu Valve test and long-term mobile phone customer feedback valve stability and reliability in different working conditions, whether the valve sealing performance is stable, whether the operation is flexible.

Conformity with Standards and Certifications :

Product certification: Eathu Valve is equipped with product certification in line with industry norms and international standards, such as ISO, api, ansi and other standards, and the valve factory will have internal factory inspection reports and related certificates.
EATHU Butterfly Valve Supplier

Industrial and Chemical:

butterfly valves can control the flow and pressure of various corrosive, high temperature or high pressure fluids, such as acid and alkali solutions, chemicals and petroleum products, and have good sealing properties

Water Supply and Drainage System

butterfly valves can effectively control high flow water flow and reduce pipeline pressure loss in urban construction.

Power and Energy:

In the power and energy industry, butterfly valves are used in cooling water systems of thermal power plants and nuclear power plants to regulate the flow and temperature of cooling water, as well as for fluid control in gas piping systems.

Air conditioning and Refrigeration Technology:

Butterfly valves are used in air conditioning and refrigeration technology to regulate the flow of coolant in the refrigeration cycle.

Food & Pharmaceuticals:

Butterfly valves control the flow of various liquids and semi-fluids in the production processes of food and pharmaceuticals due to their hygienic material selection and excellent cleaning properties.
