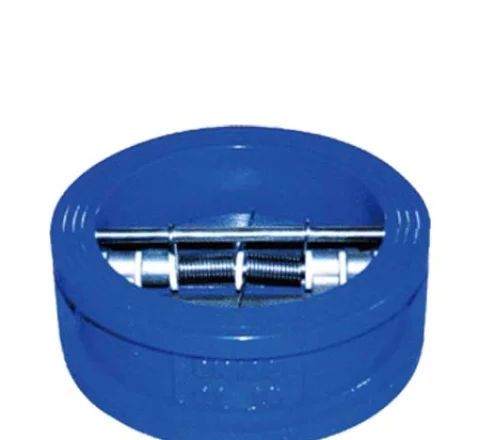

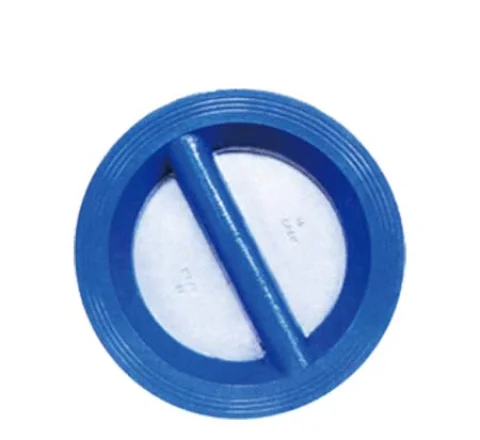

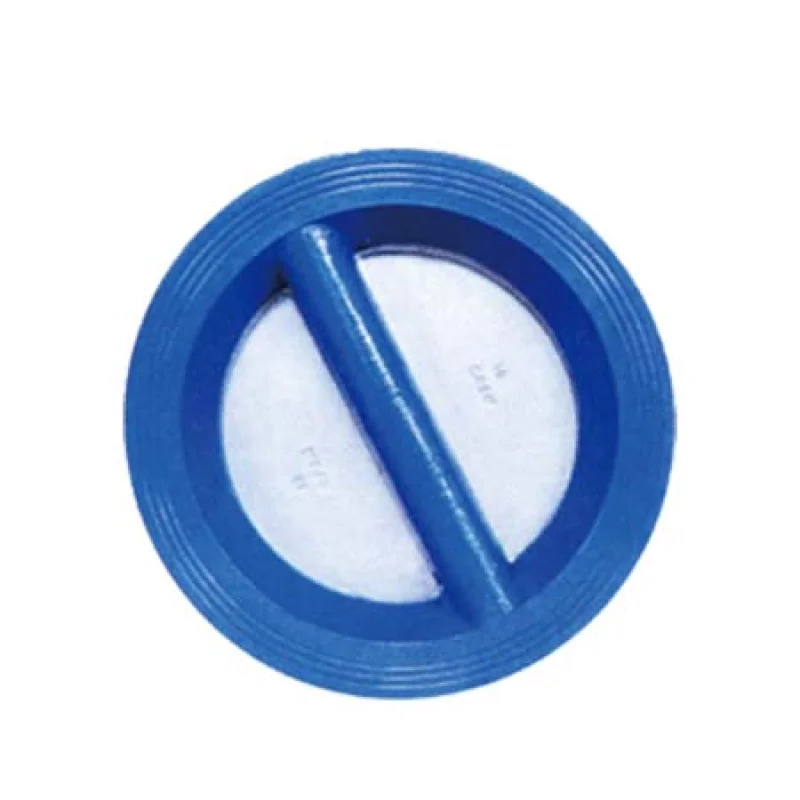

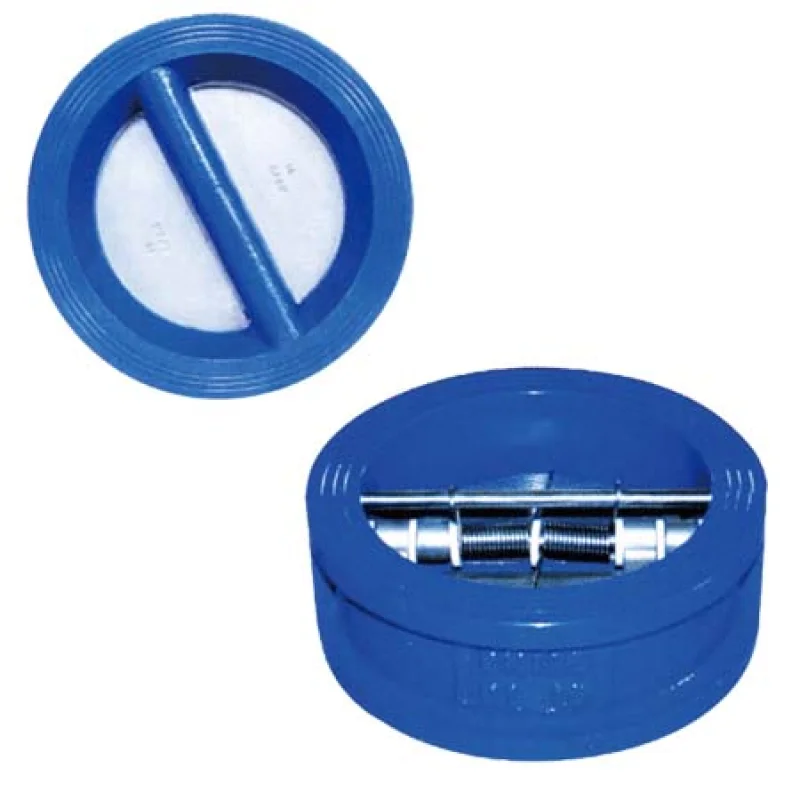

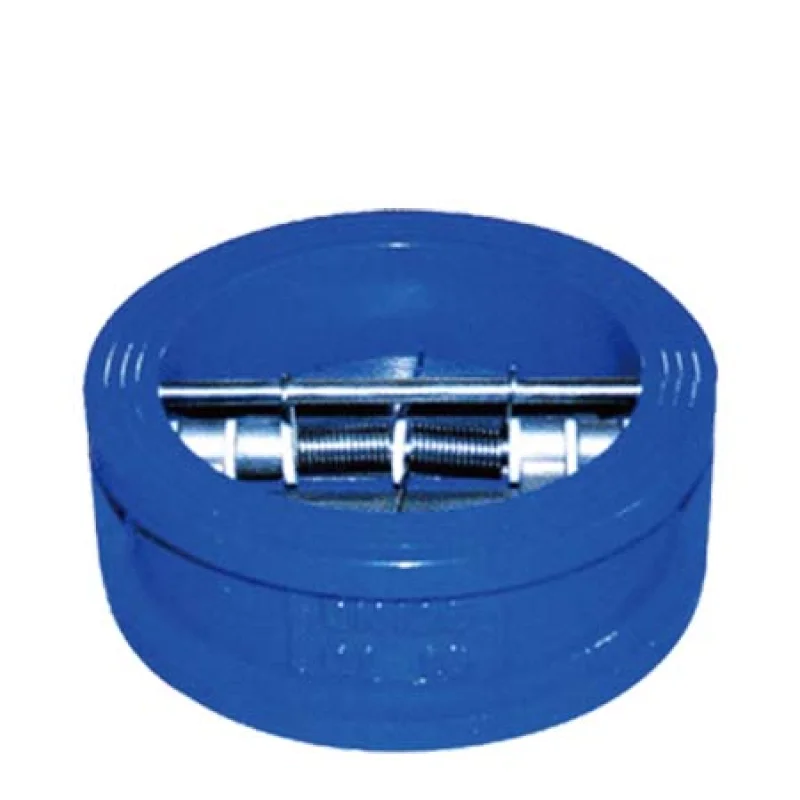

Name: Cast Iron Dual Plate Check Valve
Brand: Cast Iron Dual Plate Check Valve
SKU: 9999
Price: 6.9 USD
Availability: InStock
Rating: 5 (5 reviews)

Cast Iron Dual Plate Check Valve

Features:

MOQ: 50 Pcs

Material: Cast Iron

Certification: API 598

Types: Flange

EATHU offers a wide range of Dual Plate Check Valves, with a full range of body materials and gaskets that can be reasonably selected according to the actual working conditions or user requirements, and are suitable for a wide range of pressures, temperatures and media. The flange connection can adopt various pipe flange standards (e.g., EN1092/ANSI B16.1, etc.) and flange sealing surface form to meet the engineering and user requirements.

EATHU Can Provide These Dual Plate Check Valve

We provide various specifications of valves, here is a brief introduction of check valves with our capabilities, if you need to know more, you can send a request for quotation to us, we provide you with more information about gate valves and the most suitable offer.

MOQ	≥ 50 pics per Order
SAMPLE SUPPORT	Yes
OEM SUPPORT	Yes
SIZE (MM)	DN40-DN800
MATERIAL	Cast Iron
PRESSURE (MPa)	PN 10/PN16
MANIPULATION METHOD	Manual
PROCESS	Investment Casting / Lost Foam Casting / Machining
VALVE GRADE	Food Grade / Sanitary Grade / Industrial Grade
CLASSIFICATION	Cast Iron Check Valves
CERTIFICATION	ISO9001 / ANSI / DIN / BS / GOST / According to Requirements
PRODUCTION CAPACITY	300 Tons / Months
OTHER SERVICE
PACKAGE MATERIAL	Wood / Corrugated Paper
PACKAGE SIZE	Customized Support
PACKAGING APPEARANCE	Customized Support
DELIVERY	Global Delivery Support
QA SERVICE SUPPORT	Yes

About Cast Iron Dual Plate Check Valve

We will introduce you to the Double Plate Check Valve here.The Wafer Type Double Plate Check Valve is a check valve designed with a compact, wafer-type body that can be mounted between flanges. It utilizes two spring-loaded plates (or discs) that pivot open to allow positive flow and close to prevent backflow.

Technical Data:

Size ：DN40-DN800

Working Pressure：PN10/PN16

Face to Face ：DIN 3202-K3

Flange Drilling：ANSI B16.1 Class 125.EN1092-PN10/PN16

Inspection and Test ：API598

Principle of operation:

Double plate check valves operate using two spring-loaded plates. When fluid flows in the desired direction, the plates pivot open to allow fluid to pass through. If fluid flows in the opposite direction, the springs press the plates back against the valve seat, stopping fluid flow and preventing backflow. This action ensures fast and efficient closure.

Product Features:

Wafer body style fits between FF or RF flanges.

Upper and lower PTFE thrust washers

Resilient Buna-N or EPDM seat.

Dual Plate Valves give maximum strength with minimum opening time.

Torsion springs assist valve closure,preventing flow reversal.

Thrust washers reduce friction and wear of valve plate hinges.

Choose A Better Manufacturer

EATHU double-plate check valves are known for their high quality construction, reliability and compliance with industry standards. We ensure that each valve undergoes stringent quality control to provide optimum performance and longevity in a variety of industrial applications. In addition, we offer excellent customer support and technical support.

Choose EATHU Check Valve

Higher Quality Dual Plate Check Valve

ISO 9001 Certified Casting Factory

EATHU has been awarded the ISO 9001:2015 Quality Management System Certificate. We have established a comprehensive quality management system based on this certificate, which includes quality control throughout the entire process, from procurement to delivery, to ensure that our products meet international standards and customer requirements.
We strictly control every production process and finely manage every link from raw materials to finished products. We ensure high and stable product quality

Well-equipped QC Center

EATHU has professional QC equipments and technicians to carry out strict quality inspection for each product, including leakage rate inspection, pressure resistance inspection, sealing inspection and service life inspection, to ensure the quality and safety of the products.

Perfect Quality Assurance Services

EATHU adheres to the service concept of quality first and customer first, and we have established a perfect customer service system. Our sales staff will respond to your needs and feedback in a timely manner to ensure that each customer's needs are taken seriously.
Save More Time, Effort and Money

More Thoughtful Services

Technical Support: In order to help you use the valve better and make your project work properly, EATHU will provide you with a series of technical support, such as selection, wiring or maintenance guidance.
Sample Support: We know it takes a lot of courage to try a new brand of valve. Therefore, we can provide sample service to help you test whether the system or equipment can work properly.

More Comprehensive Supply Chains
We provide comprehensive solutions for the entire process from raw material procurement to product delivery to the end customer. We provide customer satisfaction by improving efficiency and reducing costs. By choosing our supply chain services, you will get an efficient, flexible and customer-centered supply chain solution to help your business continue to grow.
For more information or customized services, please feel free to contact us.

ARTICLES of Dual Plate Check Valve

We are here to provide you with information on check valves, technology and news about gate valves, as well as real-time updates on EATHU's company news. Feel free to contact us for proposals and quotations.

8th May, 2024

Cast Iron Valves VS Cast Steel Valves

Valves according to the material can be divided into cast iron valves, cast steel valves, stainless steel valves (201, 304, 316, etc.)。Here, Eathu answers your questions about the differences between cast iron and cast steel valves.
