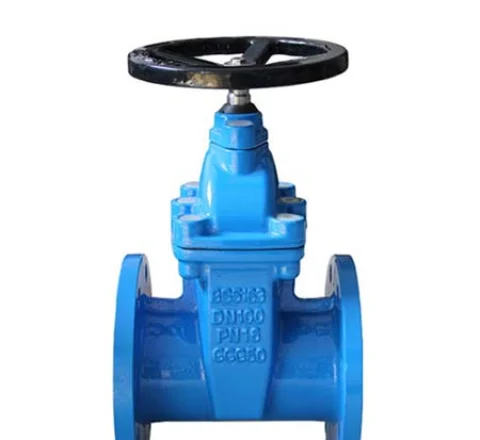

Name: BS5163 Cast Iron Flanged End Gate Valve
Brand: BS5163 Cast Iron Flanged End Gate Valve
SKU: 9999
Price: 6.9 USD
Availability: InStock
Rating: 5 (5 reviews)

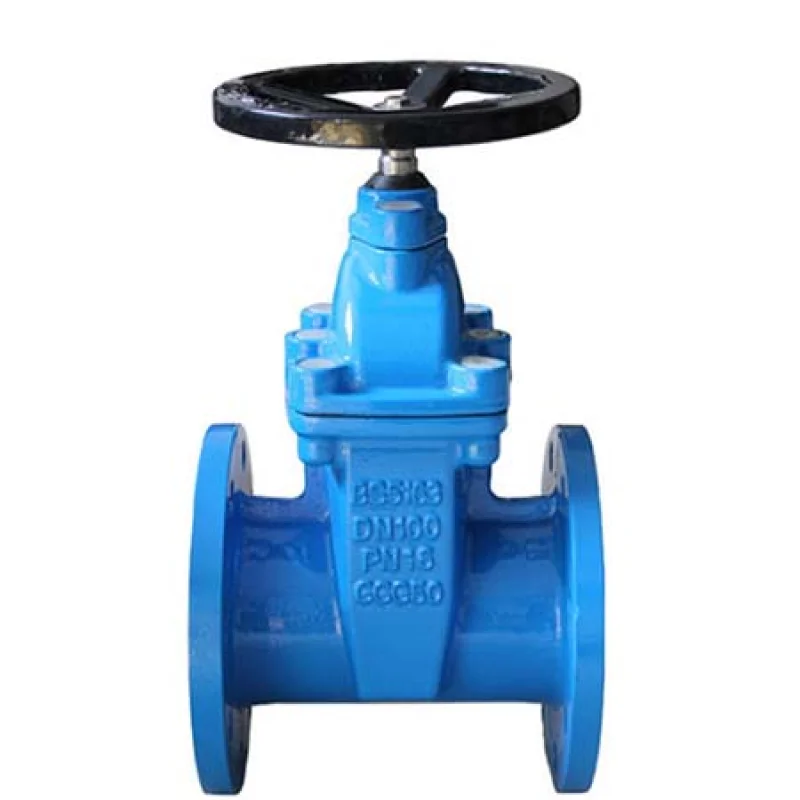

BS5163 Resilient Seated Flanged Gate Valve

BS5163 Cast Iron Flanged End Gate Valve

Features:

MOQ: 30 Pcs

Valve body material: ductile iron

Valve structure: flange

Certification: BS5163 /ISO 9001

EATHU offers you high quality ductile iron flanged gate valves, gate valve design in accordance with BS 5163 PN 16 standard, flange size in accordance with EN 1092 standard, sizes DN 50~ DN600, gate valves can be operated by handwheel or gearbox. Send us your requirements, we can fulfill most of the gate valve purchasing needs in the market.

EATHU Can Provide These BS5163 Cast Iron Flanged End Gate Valve

Here we introduce BS5163 Cast Iron Flanged End Gate Valve specification, size, caliber, material and so on, also show you the production capacity of EATHU, hope that through these can let you know more about us and our valves.

MOQ	≥ 50 pics per Order
SAMPLE SUPPORT	Yes
OEM SUPPORT	Yes
SIZE (inch/MM)	DN 50 ~DN 600
MATERIAL	Cast Iron, Ductile Iron
PRESSURE (MPa)	PN 16
MANIPULATION METHOD	Handwheel / gear box be optional
PROCESS	Investment Casting / Lost Foam Casting / Machining
VALVE GRADE	Food Grade / Sanitary Grade / Industrial Grade
CLASSIFICATION	Cast Iron Gate Valves
CERTIFICATION	BS 5163 / According to Requirements
PRODUCTION CAPACITY	300 Tons / Months
OTHER SERVICE
PACKAGE MATERIAL	Wood / Corrugated Paper
PACKAGE SIZE	Customized Support
PACKAGING APPEARANCE	Customized Support
DELIVERY	Global Delivery Support
QA SERVICE SUPPORT	Yes

About BS5163 Cast Iron Flanged End Gate Valve

For your brief introduction of BS5163 Cast Iron Flanged End Gate Valve, BS 5163 is a kind of British valve standard, the standard specifies the height size of the valve, the through diameter, the nominal pressure, etc., we here introduce one of the PN 16 flanged gate valve.

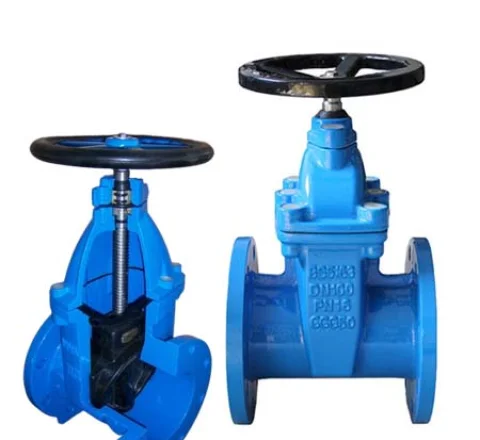

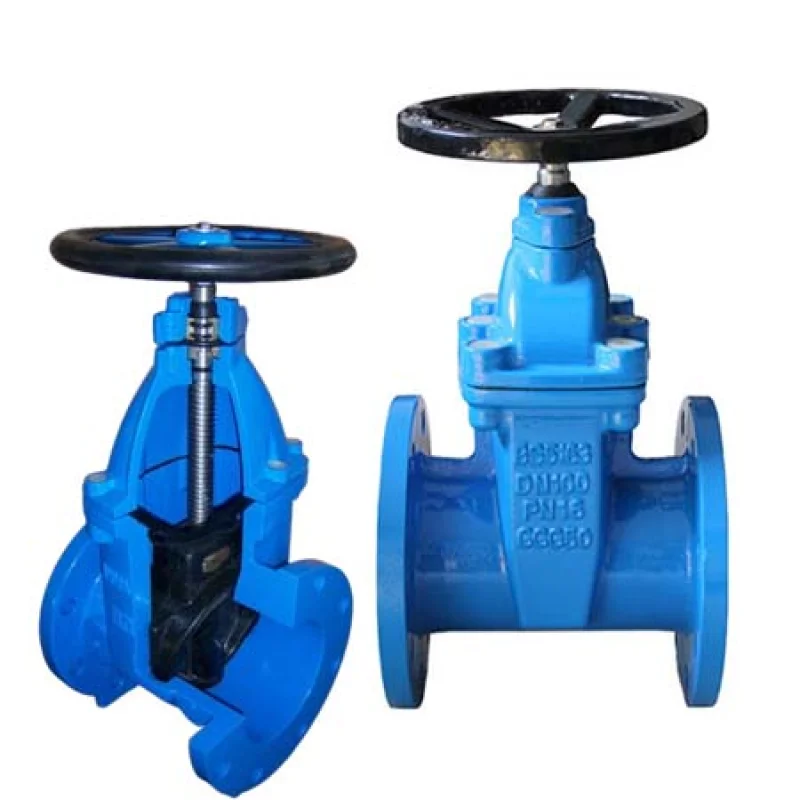

BS5163 Cast Iron Flanged End Gate Valve

Composition:

We design according to BS 5163, the gate valve valve design provides for a female threaded stem, wedge gate, metal or elastomer body seat, copper alloy or ferrous metal inner parts, and a variety of operating methods. The maximum working pressure of the valve is 16 bar, EPDM/BUNA O-rings are used, the seal is covered with a dust seal, in addition, the valve's pressurized cast iron parts are painted to prevent rusting, and the valve's internal and external surfaces are suitably treated.

Features:

1.BS 5153 gate valve is used for underground water supply pipeline projects, mainly for drinking water pipeline projects.

2.The valve has been subjected to 1,000 operating cycles at an operating rate of 6 cycles per minute from fully closed to fully open and from fully open to fully closed position under circulating hydrostatic pressure.

3. The interior and exterior surfaces are coated with a fusion bonded epoxy resin in accordance with ANSI/AWWA C550 to provide reliable corrosion resistance.

Choose the Best Supplier

EATHU is a leading valve company offering services and items ranging from domestic plumbing valves to large industrial valves. We manufacture valves at very affordable prices at the request of our customers, who have always believed in and supported our valves and services, and together we have built a long-term partnership.

EATHU BS5163 Cast Iron Flanged End Gate Valve Factory

We arrange different production processes according to the different characteristics and requirements of the valves, EATHU has coated sand casting, silica sol casting, precision, etc. Different valves have different requirements and different production processes, in order to achieve the highest quality and maximum functionality of the valves, EATHU sets up the best program for you.

Coated Sand Casting

EATHU Foundry provides you with coated sand casting, coated sand casting produces castings with high surface finish and flat surface, we can adjust the ratio of raw material sand appropriately according to the user's different technical needs in terms of curing speed, film removal, fluidity, routing, casting surface finish, storage and so on.

Clay Sand Casting

Silicone sol casting as a kind of precision casting, EATHU use wax injection equipment is imported hydraulic equipment, silicone sol process equipment and raw materials are advanced advanced, so the cost of this process compared to other annoying shit will be higher, but silicone sol is suitable for small casting casting, the surface is fine.

Silica Sol Casting

Clay sand production line is widely used in foundries, as one of the important means in the casting process, it is mainly used in casting sand, core sand, etc., which is used to change the wet strength and improve the modeling, etc. EATHU welcomes you to visit our factory.

Choose EATHU Cast Iron Gate Valve

Choosing a trustworthy valve manufacturing supplier is crucial, and EATHU's valves have become the first choice for many of our customers due to their outstanding performance, superior quality and first class service. We trust that after reading this, you will have a better understanding of EATHU's services!

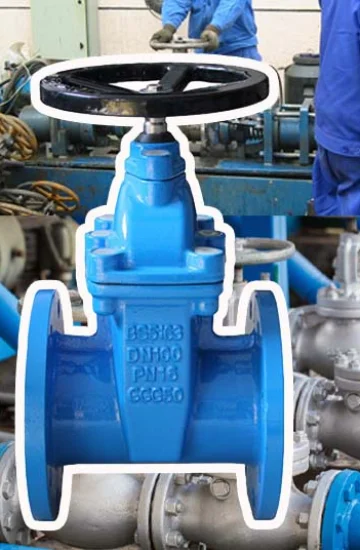

High Quality BS5163 Cast Iron Flanged End Gate Valve

Excellent BS5163 Cast Iron Flanged End Gate Valve Quality

We manufacture this valve in accordance with BS 5163. EATHU's technical and production teams are committed to the highest level of pressure resistance, durability, corrosion resistance and tightness. In addition, we conduct pressure, strength and functionality tests on gate valves in accordance with BS 5163 to ensure the accuracy of use.

Well-equipped QC Center

EATHU has set up a well-equipped QC center to ensure the quality of our products. Our QC center is equipped with several testing facilities and professional QC personnel, and the test results will be recorded and saved, and we can also provide or accept third-party inspection from our customers.

Attentive after-sales service

EATHU set up a specialized after-sales team to respond to after-sales problems in a timely manner to solve them, we provide a certain supply of spare parts for the valves, for customers to carry out on-line guidance, technical advice, to provide product quality assurance, to ensure that the valves in the warranty period for normal use, your comments and feedback, we are happy to listen and continue to collect in the hope of improving customer satisfaction.
Save More Time, Effort and Money

More Comprehensive Supply Chains

We can meet the diverse needs of our customers and provide you with a one-stop shop.
In a highly competitive market, many companies are engaged in comprehensive cost control: we are able to achieve cost savings through less consumption, lower emissions, strict product requirements, as well as environmental and production safety.
EATHU can not only supply you with a wide range of multi-standard valves, but also provide sales of related products, such as, pipe fittings, flanges and other services, where you can purchase products for the entire project, or customized products, we can be customized according to your drawings and requirements, to better meet the project and working conditions for you.
Our technology can provide you with professional technical advice to help you choose more suitable valves and piping solutions.
EATHU works with a number of suppliers and freight forwarding companies, we can compare the most suitable and cost-effective price program for you.

More Thoughtful Services

We provide BS certification, but also have ASTM, ANSI, NSF, API, DIN, JIS, AWWA and other certificates, we can also assist customers to carry out other products industrial grade, food grade and other certificates.
We provide fast response pre-sales and after-sales service, including product return, maintenance, online guidance for installation, and so on. And we have a specialized customer feedback mechanism to collect and process your comments in a timely manner.

ARTICLES of BS5163 Cast Iron Flanged End Gate Valve

We are here to provide you with information on Flanged End Gate Valve, technology, news, etc. We will keep you up to date, as well as EATHU news in real time. Please feel free to contact us for proposals and quotations.

8th May, 2024

Cast Iron Valves VS Cast Steel Valves

Valves according to the material can be divided into cast iron valves, cast steel valves, stainless steel valves (201, 304, 316, etc.)。Here, Eathu answers your questions about the differences between cast iron and cast steel valves.

REVIEWS FROM CUSTOMER

We have many customers who have been cooperating with us for many years, here are their comments on EATHU, their trust and support for us to grow, we hope to become a good partner with you as well, to be your most trusted valve supplier!
