Composition:

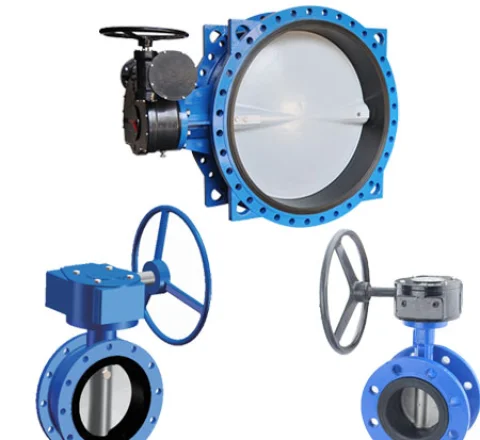

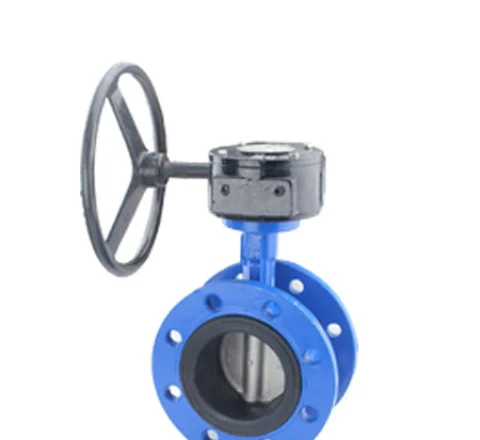

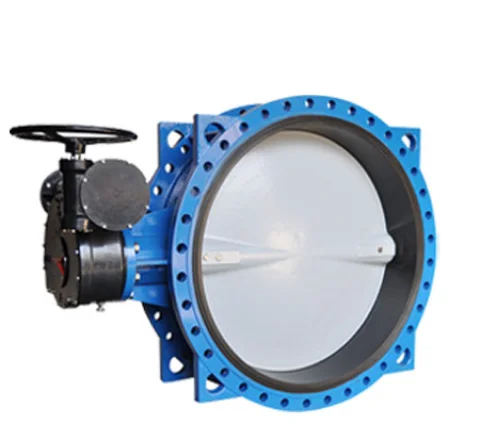

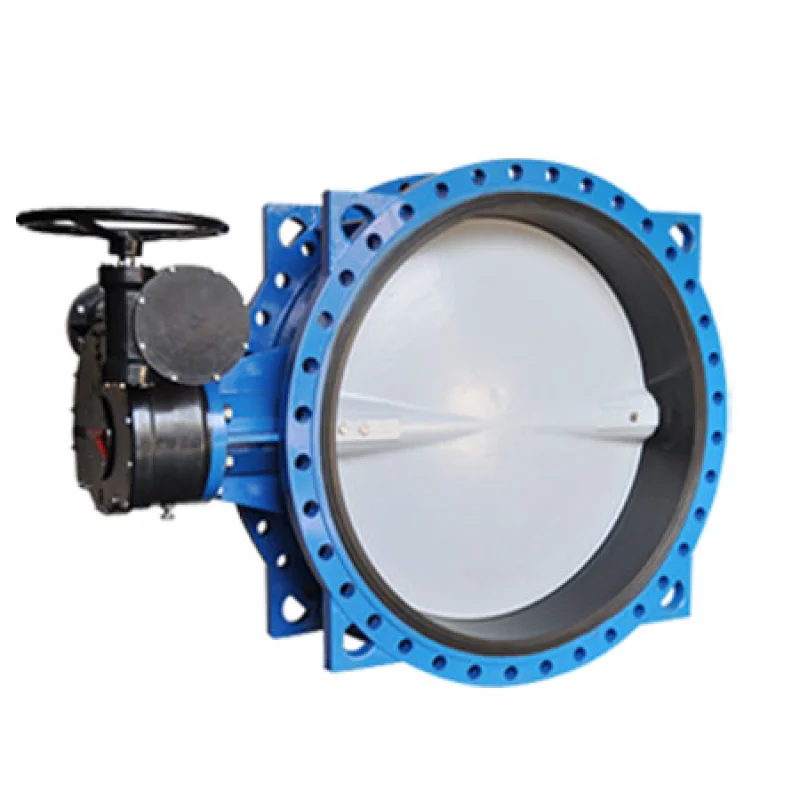

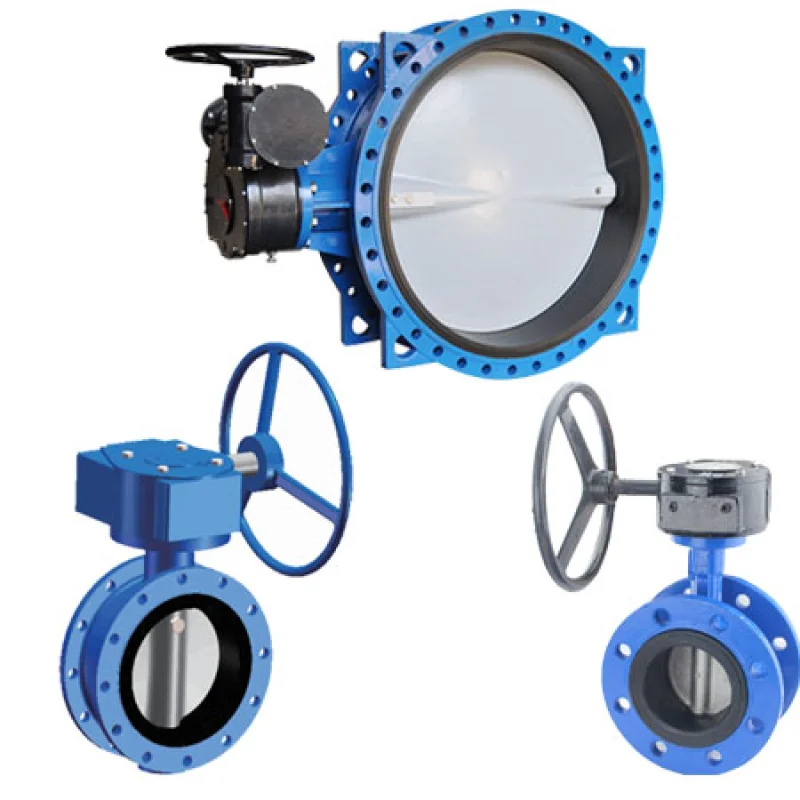

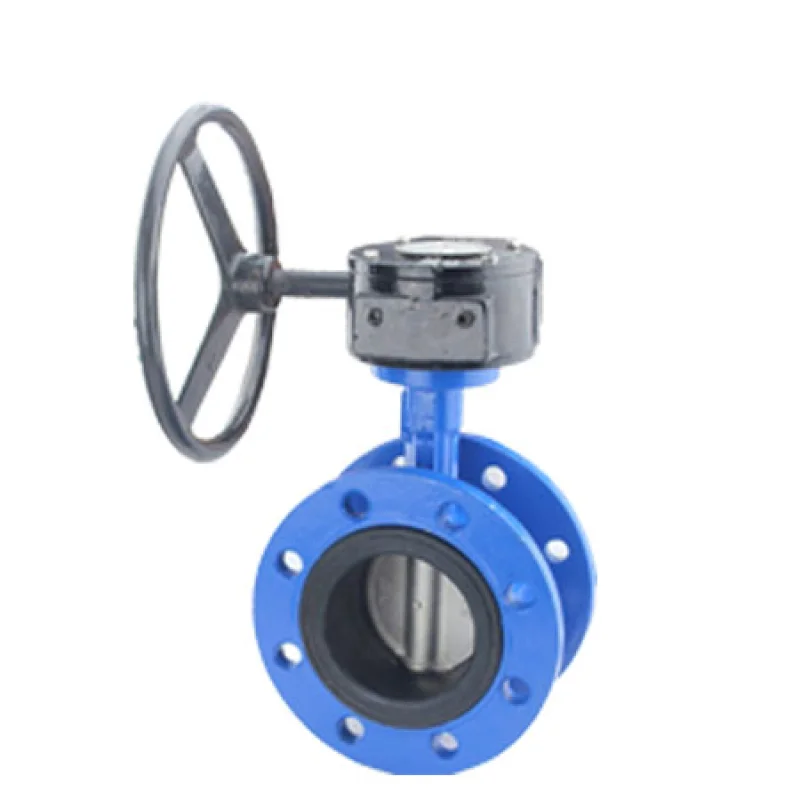

The valve consists of valve body, valve shaft, butterfly plate, seat, seal, actuator, and other valve parts.The axis of the butterfly plate and stem of the centerline butterfly valve is in the center of the valve body, and the butterfly plate rotates in the middle of the caliber. And AWWA C504 is a special type of butterfly valve standard for water distribution system.
Materials:
The valve shaft is made of stainless steel 306 or 316, the butterfly plate can be chosen from ductile iron, SS316 sealing surface, or stainless steel butterfly plate, the valve body NBR vulcanized rubber, and you can choose the handwheel cargo drive head to operate the valve.
Advantages:
1. simple structure: the structure of the centerline butterfly valve is relatively simple, low manufacturing cost.
2. Flexible switching: the switching operation of the centerline butterfly valve is relatively convenient, only need to rotate or push the valve stem to realize fluid control.
3. small flow resistance: due to the special structure of the valve disc, the fluid resistance of the centerline butterfly valve is small and the flow capacity is strong.
4. Good sealing performance: the seat sealing ring of the centerline butterfly valve can seal the valve disc and seat well and reduce fluid leakage.
Applications:
Water systems
One of the main applications for AWWA C504 butterfly valves is in municipal water systems. They are used to control and regulate the flow of water in pipelines, ensuring efficient distribution and management of water resources.
Wastewater Treatment Plants
Helps to control the flow of wastewater through various treatment processes, ensuring that the water is treated efficiently before it is discharged back into the territory.
Industrial Applications
In addition to municipal applications, AWWA C504 butterfly valves are used in a variety of industrial processes. They are particularly useful in industries where large quantities of fluid need to be controlled and regulated, such as chemical processing, food and beverage production, and power generation.
Irrigation Systems
AWWA C504 butterfly valves are also used in agricultural irrigation systems. They help manage the flow of water to different areas of a farm field, ensuring that crops receive the amount of water they need for optimal growth.
Choose A Better Manufactrur
A wide range of butterfly valves
EATHU has been exporting valves for over 30 years and knows the field of valves inside out. We manufacture a wide range of valves, including butterfly valves, wafer butterfly valves, lug butterfly valves, grooved butterfly valves, and we also manufacture a number of industrial standard valves, such as AWWA, EN, API, and so on. In addition, gate valves, ball valves, check valves, globe valves, etc. can be purchased from EATHU.
Cost-effective
In EATHU you can not only purchase a wide range of high-quality valves, but also enjoy cost-effective service, the most appropriate price, EATHU provides one-stop shopping for customers, from raw materials to delivery, every step of the way EATHU to do the best, so that customer satisfaction!
